Logic samples each channel at up to 24M times per second. A large fraction of practical, real world applications run at less than 10MHz, and Logic is ideal for these.
Logic has 8 inputs -- it can monitor 8 different digital signals at once. For many modern microcontroller-based designs, this is plenty.
10 billion samples
Logic can save as many as 10B samples, letting you to capture even the most elusive events. No more dealing with frustratingly small sample buffers.
Logic accepts voltages from -.5V to 5.25V, and has standard CMOS thresholds of .8V for logic low, 2.0V for logic high. Input impedance is approximately 1MΩ paralleled by 10pF (see more specs)

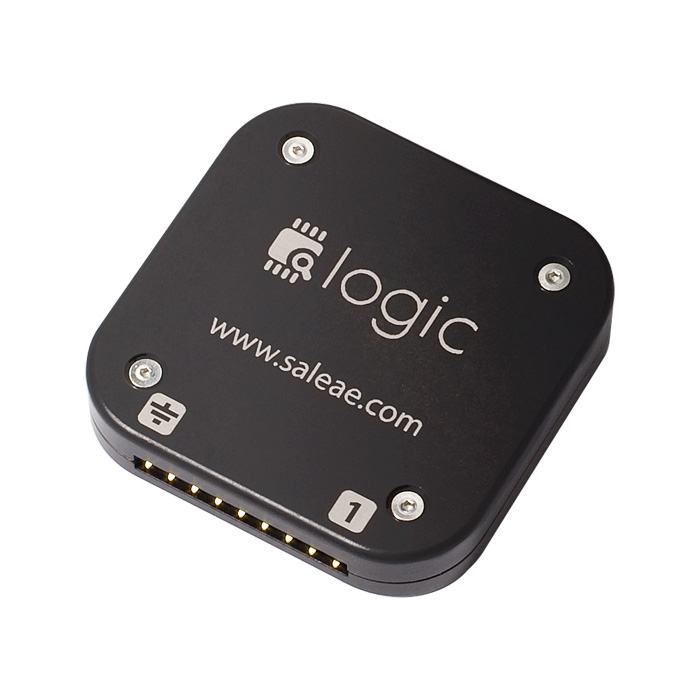

We love well made tools. That’s why we make Logic’s case out of custom CNC machined aluminum and make sure its anodized surface is finished to perfection.
Logic’s inputs are protected against overvoltage conditions via current-limiting resistors and ultra-low-capacitance diode clamps. A resettable fuse protects the USB ground return line to augment the USB host’s existing protection.

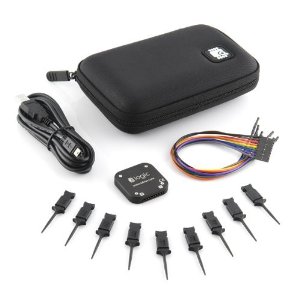

Start debugging within 5 minutes of opening your new Logic; everything is included: An ultra-flexible 22AWG 64/40 wire harness, 9 high-quality micro-hook probes, a USB cable (2 meter mini-B to A), and a nice carrying case. Download the software from our site (see software)
Logic comes with a 2-year warranty. If your Logic stops working for any reason, we’ll ship you a replacement at no cost, anywhere in the world. As with any other question or issue, just drop us an email, and we’ll take care of you.
